NETUM

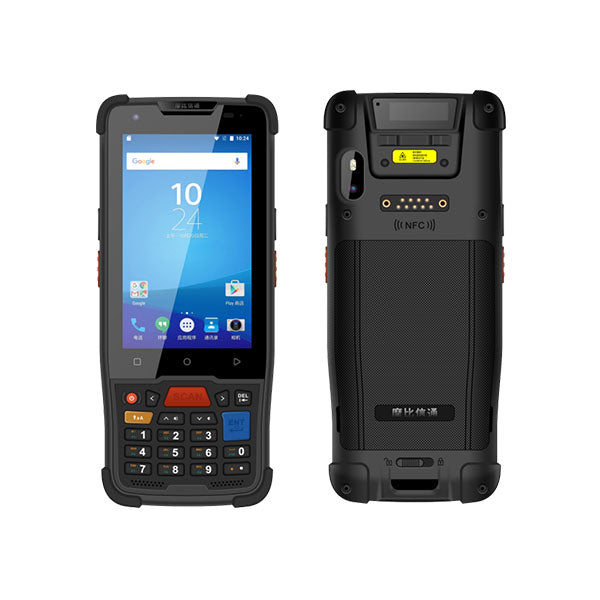

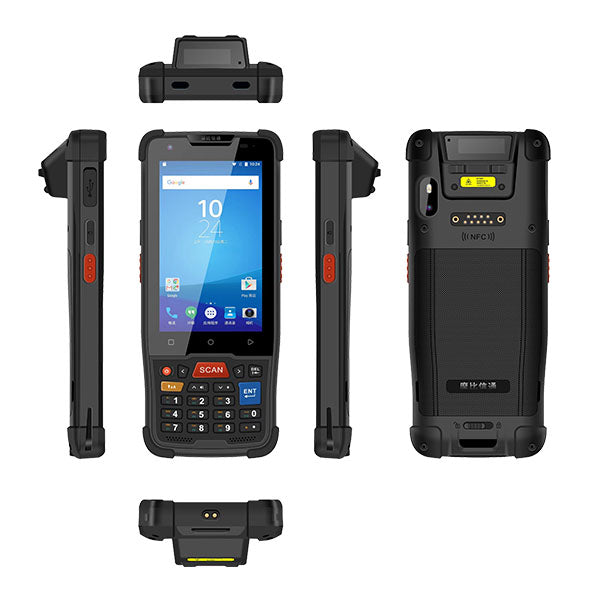

NSM72 Handheld Industrial Android Data Collector Touch Screen Mobile Devices Terminal Logistic 1D 2D Barcode Scanner PDA

$799.00
$599.00

Scanning Performance

a) A new generation of binocular two-dimensional image scanning head, ultra long DOF design, both short and long range scanning code
b) Datalogic decoding technology and algorithm authorization were used
c) Optical grade precision scanning mode
d) 20-speed scanning lighting to adapt to different environments

Industrial protection

a) IP67 industrial protection rating
b) One - piece magnesium - aluminum alloy battery compartment, continuous charge when falling and flipping impact
c) The overall structure design of plate groove ensures the overall fuselage is thin and light

Unique Product Characteristics

a) 45 degree tilt scan window to meet more application scenarios
b) Double horn design, fear not noisy environment, more than 100db
c) Increase the "Enter key", the operation is more convenient, one million times without wear
d) Dual camera engine, intelligent switching distance; Three-color lighting,Solve the reading problem under different color bar code combination
e) Large-capacity battery with ultra-low power consumption, 2.5 hours of fast charging, 18 hours of ultra-long working time, 42 days of standby



Product specification

Specifications
OS Android 12
CPU MT8768A，Octa Core CPU, 12nm
MEMORY 3+32/4+64
Extend Slot MicroSD,support SDHC, up to 128GB;
Nano
PC Communication USB 2.0 OTG: Type-C；
Sensers Gravity sensor, Proximity detector, Photosensitive sensor, Hall element,Electronic compass(option version), Gyroscope(option version), Status lamp
LED Charging, Scan and System stauts
Charging Time ≤2.5 h (Room Temperature)
Operation Duration 18 hours
Data Collection
Scan Engine Support VGA Dual Camera scan engine of E3300
2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D Auto discriminates all standard 1D codes including GS1，code39，code 128，code93
DataBarTM linear codes.
Post Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(Optional) 13.56MHz NFC
Wireless Connectivity
WLAN 802.11 a/b/g/n/ac, 5G FEM PA
WWAN
 WWAN ROW
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B1/2/3/5/7/8/20/28
TDD_LTE:B34/B38/39/40/41
WWAN NA
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B2/B4/B5/B7/B12/B17/B25/B26
VoLTE LTE CAT6
CA Downlink 300Mbps, B1/B3/B39/B40/B41
WPAN BT 5.1
GPS GPS/Glonass/Beidou,Assisted GPS
Physical Specifications
LCD 4” , IPS, 800*480, 450nits
Touch Capacitive screen, High strength glass
Camera Fixed focal length of front camera, 5 million pixels (option version); Main camera autofocus, 13 megapixel, dual flash
Keypad Left/Right Scan Key, Vol+/Vol- Key, Power Key，K1/K2 Function Key
Reciver Support
Speaker Double speaker, Greater than 100db
Mic Double Mic with Noise Reduction
Charging IO USB type-C
Battery Removable 5100mAh；Built-in small battery80mA，8C
Dimension 166*71*17mm(Without Scan Window)
Weight 274g(With battery)
Environmental Specifications
Operation Temperature -25°C to 55°C
Storage Temperature -30°C to 70°C
Humidity 5%-95% non-condensing
Drop 1.8m on concrete, 3 times on each side
Tumble 3000 hits of 0.5m tumble,600 hits of 1m tumble
IP IP67
ESD ± 8 kV contact discharge, ± 15 kV air discharge,
Keypad lifecycle 100k
Gift Box
Device, QSG, Adapter, USB cable，Battery
Optional Accessory
Single host charger, 4 host charger, Battery, Protective sheath, Hand shank
$799.00
$599.00
MEMORY:
Plugs Type:

Frequently Bought Together

Total price $755.97

Scanning Performance

a) A new generation of binocular two-dimensional image scanning head, ultra long DOF design, both short and long range scanning code
b) Datalogic decoding technology and algorithm authorization were used
c) Optical grade precision scanning mode
d) 20-speed scanning lighting to adapt to different environments

Industrial protection

a) IP67 industrial protection rating
b) One - piece magnesium - aluminum alloy battery compartment, continuous charge when falling and flipping impact
c) The overall structure design of plate groove ensures the overall fuselage is thin and light

Unique Product Characteristics

a) 45 degree tilt scan window to meet more application scenarios
b) Double horn design, fear not noisy environment, more than 100db
c) Increase the "Enter key", the operation is more convenient, one million times without wear
d) Dual camera engine, intelligent switching distance; Three-color lighting,Solve the reading problem under different color bar code combination
e) Large-capacity battery with ultra-low power consumption, 2.5 hours of fast charging, 18 hours of ultra-long working time, 42 days of standby



Product specification

Specifications
OS Android 12
CPU MT8768A，Octa Core CPU, 12nm
MEMORY 3+32/4+64
Extend Slot MicroSD,support SDHC, up to 128GB;
Nano
PC Communication USB 2.0 OTG: Type-C；
Sensers Gravity sensor, Proximity detector, Photosensitive sensor, Hall element,Electronic compass(option version), Gyroscope(option version), Status lamp
LED Charging, Scan and System stauts
Charging Time ≤2.5 h (Room Temperature)
Operation Duration 18 hours
Data Collection
Scan Engine Support VGA Dual Camera scan engine of E3300
2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D Auto discriminates all standard 1D codes including GS1，code39，code 128，code93
DataBarTM linear codes.
Post Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(Optional) 13.56MHz NFC
Wireless Connectivity
WLAN 802.11 a/b/g/n/ac, 5G FEM PA
WWAN
 WWAN ROW
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B1/2/3/5/7/8/20/28
TDD_LTE:B34/B38/39/40/41
WWAN NA
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B2/B4/B5/B7/B12/B17/B25/B26
VoLTE LTE CAT6
CA Downlink 300Mbps, B1/B3/B39/B40/B41
WPAN BT 5.1
GPS GPS/Glonass/Beidou,Assisted GPS
Physical Specifications
LCD 4” , IPS, 800*480, 450nits
Touch Capacitive screen, High strength glass
Camera Fixed focal length of front camera, 5 million pixels (option version); Main camera autofocus, 13 megapixel, dual flash
Keypad Left/Right Scan Key, Vol+/Vol- Key, Power Key，K1/K2 Function Key
Reciver Support
Speaker Double speaker, Greater than 100db
Mic Double Mic with Noise Reduction
Charging IO USB type-C
Battery Removable 5100mAh；Built-in small battery80mA，8C
Dimension 166*71*17mm(Without Scan Window)
Weight 274g(With battery)
Environmental Specifications
Operation Temperature -25°C to 55°C
Storage Temperature -30°C to 70°C
Humidity 5%-95% non-condensing
Drop 1.8m on concrete, 3 times on each side
Tumble 3000 hits of 0.5m tumble,600 hits of 1m tumble
IP IP67
ESD ± 8 kV contact discharge, ± 15 kV air discharge,
Keypad lifecycle 100k
Gift Box
Device, QSG, Adapter, USB cable，Battery
Optional Accessory
Single host charger, 4 host charger, Battery, Protective sheath, Hand shank
